400mm hdpe pipe making machine ppr pipe extrusion equipment with price

Product Description

Jiangsu Xinrongplas Machinery Co., Ltd.
Our main products are: plastic Pipe Extrusion Line and Plastic Recycling Machine.
The main products are popular in the domestic market,such as the East China market,Southwest market,Northeast market and Central China market.The products are also exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.
Final Products

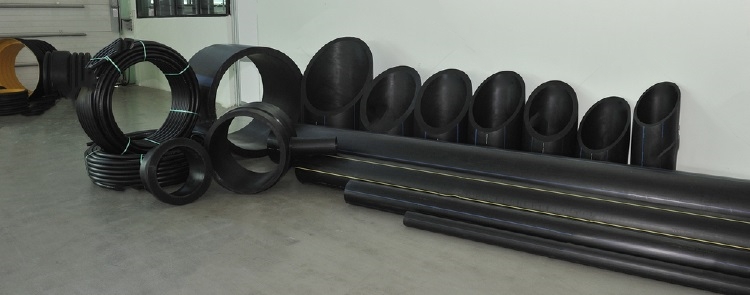

PE Pipe.
■ Good hygienic performance: no heavy metal salt stabilizer is added during PE pipe processing, the material is non-toxic, no scaling layer, and no bacteria breeding, which solves the hidden danger of secondary pollution of urban drinking water.
■ Excellent corrosion resistance: Except for a few strong oxidants, it can withstand the erosion of a variety of chemical media; no electrochemical corrosion.
■ Long service life: PE pipe can be used safely for more than 50 years under rated temperature andpressure .
■ Better impact resistance: PE pipe has good toughness and high impact resistance, and heavy objects directly
pass through the pipe, which will not cause the pipe to be broken.

More Different Pipe Products
PE Pipe
PVC Pipe
PPR Pipe
Corrugated Pipe
PPR Fiberglass Pipe
Hollow Wall Winding Pipe

If you want to know more about Plastic Pipe Extrusion Line, inquiry us now!

Products Description

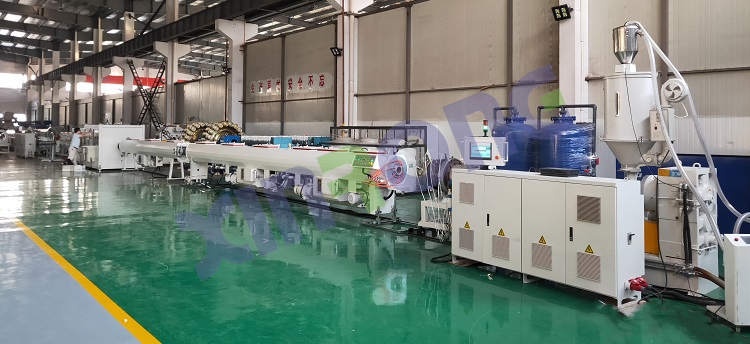

PE Pipe Extrusion Line.
Through long time and continuous innovation and testing, XinRong has developed the new generation PE pipe extrusion line with high automation, high speed, high reliability, low energy consumption. Our PE pipe extrusion can process wide range of material, including HDPE, LDPE, PP, PPR, PPH, PPB, MPP, PERT, etc.

Our PE pipe extrusion line can produce from size of minimum 16mm to 2000mm with single layer or multi-layer.

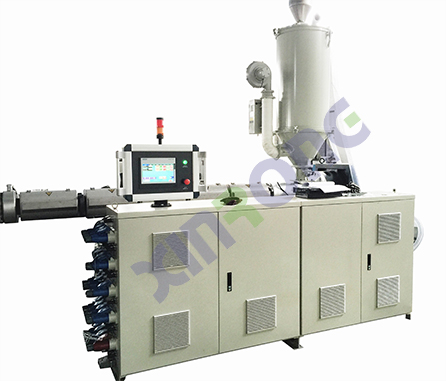

1.1 Simens Touch Screen and PLC
1.2 Spiral Structure of Barrel
1.3 Special Design of Screw
1.4 Air Cooled Ceramic Heater
1.5 High Quality Gearbox

Based on 33:1 L/D ratio for screw design, we have developed 38:1 L/D ratio. Compared with 33:1 ratio, 38:1 ratio has advantage of 100% plasticization, increase output capacity by 30%, reduce power consumption up to 30% and reach almost linear extrusion
performance.
Extrusion Die Head.
2.1 Moving Device of Die Head
2.2 Die Head Rotary Device
2.3 Heat Exhausting Device
2.4 Cooling Device for Core

Extrusion die head apply spiral structure, each material flow channel is placed evenly. Each channel is after heat treatment and mirror polishing to ensure material flow smoothly. Die head structure is compact and also provide stable pressure, always from 19
to 20Mpa. Under this pressure, pipe quality is good and very little effect on the output capacity. Can produce single layer or
multi-layer pipe.
Vacuum Tank.
3.1 Strong Cooling for Calibrator
3.2 Better Support for Pipe
3.3 Silencer
3.4 Pressure Relief Valve

Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is
in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.
Cooling Tank.
4.1 Pipe Clamping Device
4.2 Water Tank Filter
4.3 Quality Spray Nozzle
4.4 Pipe Support Adjusting Device
4.5 Pipe Support Device

Cooling tank is used to cool pipe further.
Haul off unit.
5.1 Pipe Clamping Device
5.2 Water Tank Filter
5.3 Quality Spray Nozzle
5.4 Pipe Support Adjusting Device
5.5 Pipe Support Device

Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe during traction.
Cutter.
6.1 Universal Clamping Device
6.2 Central Height Adjustment
6.3 Saw and Blade Interchangeable

Cutter controlled by Siemens PLC, working together with haul off unit to have precise cutting. Customer can set the length of pipe
they want to cut. Multi-feed-in actions for the accomplishment of one cutting process (protect blades and saws, prevent from blade
and saws stuck for thick pipe and cut face of pipe is smooth).
Stacker.
7.1 Pipe surface protection
7.2 Central Height Adjustment

To support and unload pipes. Length of stacker can be customized.
Coiler.
8.1 Use of servo motor

To coil pipe into roller, easy for storage and transportation. Usually used for pipe below size 110mm. Have single station and
double station for choice.
Product Paramenters
Model
Pipe Range (mm)
Output Capacity (kg/h)
Main Motor Power (kw)
PE63
16 - 63
150 - 300
45 - 75
PE110
20 - 110
220 - 360
55 - 90
PE160
50 - 160
300 - 440
75 - 110
PE250
75 - 250
360 - 500
90 - 132
PE315
90 - 315
440 - 640
110 - 160
PE450
110 - 450
500 - 800
132 - 200
PE630
250 - 630
640 - 1000
160 - 250
PE800
315 - 800
800 - 1200
200 - 355
PE1000
400 - 1000
1000 - 1500
250 - 355
PE1200
500 - 1200
1200 - 1800
355 - (250×2)
PE1600
710 - 1600
1800 - 2400
(250×2) - (355×2)
PE2000
800 - 2000
2400 - 3000
(355×2) - (355×2+160)
 Production Line Parameter (for reference only, can be customized)
Recommend Products
Pipe Extrusion Line
Plastic Pelletizing Machine
PP PE Film&Woven Bag Washing & Recycling Line
Why Choose Us
Jiangsu Xinrongplas Machinery Co., Ltd.

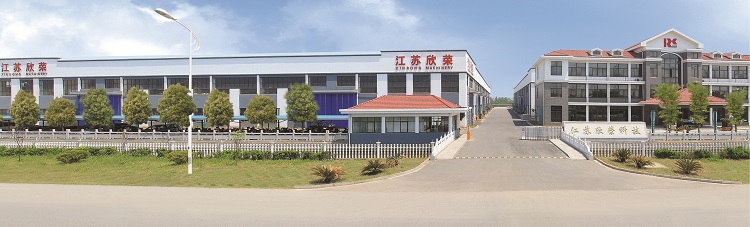

Jiangsu Xinrongplas was established in 1996. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.
Workshop.
We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.

Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!
Certificates & Patents.
International certification, National Certificate of equipment verification, and more than 30 invention patents.
Verification Certificates of equipments: ISO; CE Certificate , SGS, COC, TUV National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.

Exhibitions.

Xinrong Team.
FAQ
1) Are we manufacture or trade company?
We are manufacture,have 24 years' experiences in this field.

2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic recycling machine.

3) What kind payment we accept?
Payment term like T/T, L/C.

4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.

5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.

6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test the each production step for the best machine.

7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.

8) How long is your machine’s guarantee time?
One year

9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
